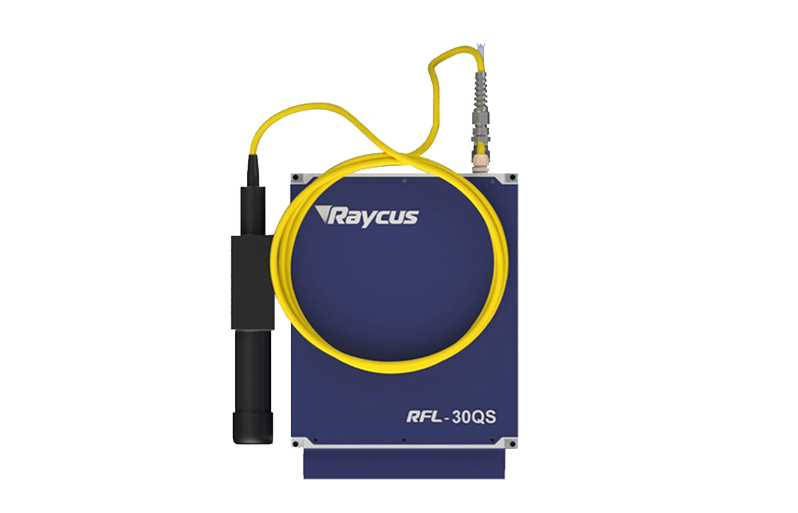

Long service life and high beam quality

The life span of fiber laser source up to 100000 hours. The beam quality is high, it is the fundamental mode (TEM00) output, and the focused spot diameter is less than 20um. The divergence angle is 1/4 of the diode pumped laser, which is especially suitable for fine and precise marking


High electro-optic efficiency

Electro optic conversion efficiency is high, simple and easy to use, no optical adjustment or maintenance needed, compact structure, high system integration, less failure.


Large application areas

All fiber lasers are equipped with optical isolators, which can effectively shield the reflected light. They can be operated on high reflective materials such as gold, silver, copper, aluminum, silicon and so on. They do not need to deviate from the center of the field mirror, which greatly broadens the application field.

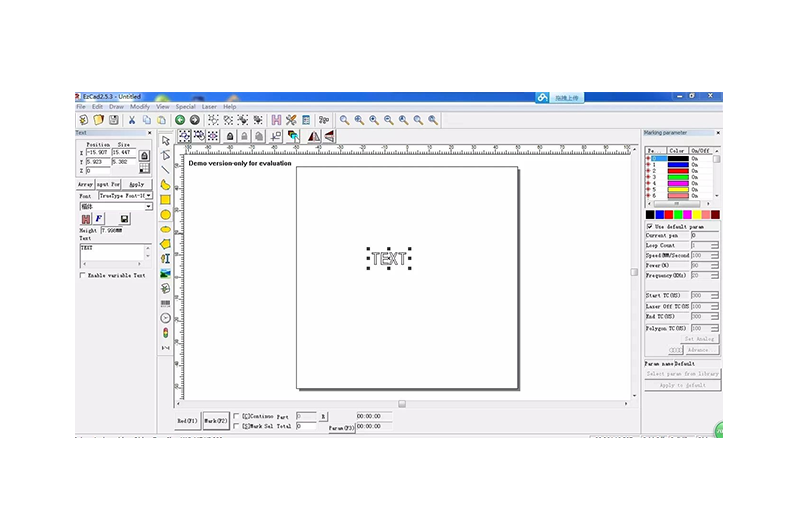

Powerful software

The marking software has powerful functions and can be compatible with files of CorelDRAW, AutoCAD and other software; it supports PLT, PCX, DXF, BMP and so on, and can directly use SHX and TTF font library; it supports automatic coding, printing serial number, batch number, date, bar code, two-dimensional code, automatic number skipping and so on, and USB interface output control.


Technical Parameter

Marking Area110*110-300*300
Cooling ModeAir Cooling
Control SoftwareEZCAD
Unit Power≤1.2kw
Marking Depth≤0.4mm
Supply Voltage220V/50Hz
Repeatability Accuracy±0.002mm

Fiber Laser Marking Machine Video

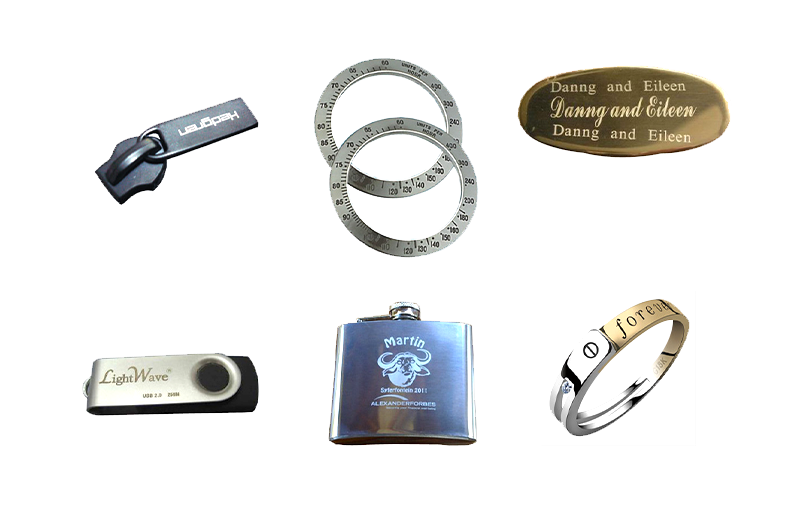

Cutting Samples

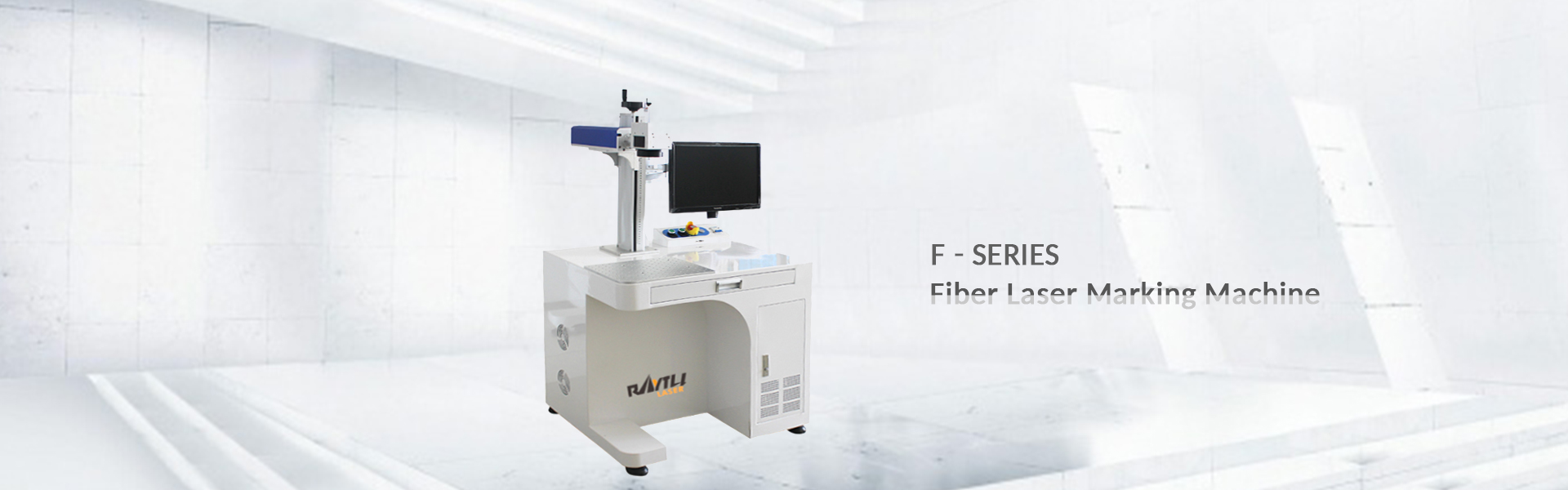

Fiber Laser Marking Machine
Fiber Laser Marking Machine
Fiber Laser Marking Machine
Fiber Laser Marking Machine

Product Recommended
