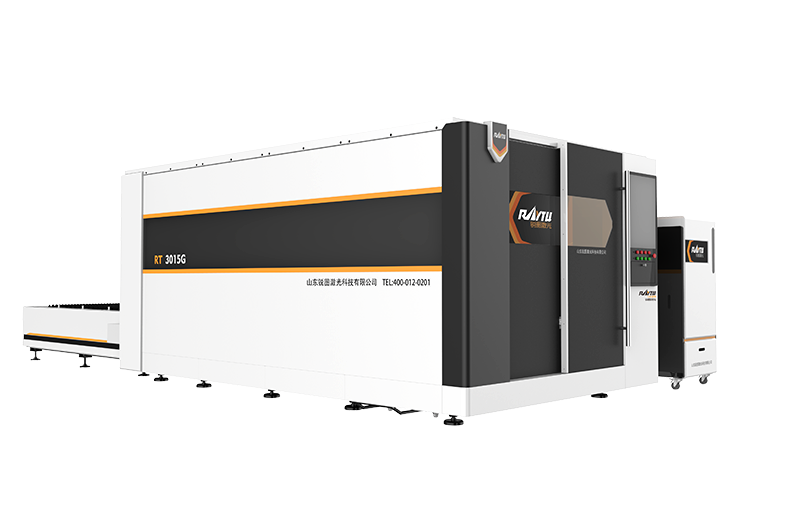

Environmental Friendly Protective Cover

Fully enclosed design in line with European CE standards, safer chain transmission mode. High-definition intelligent monitoring, each blind area can be monitored in real-time, the whole cutting process is controllable.

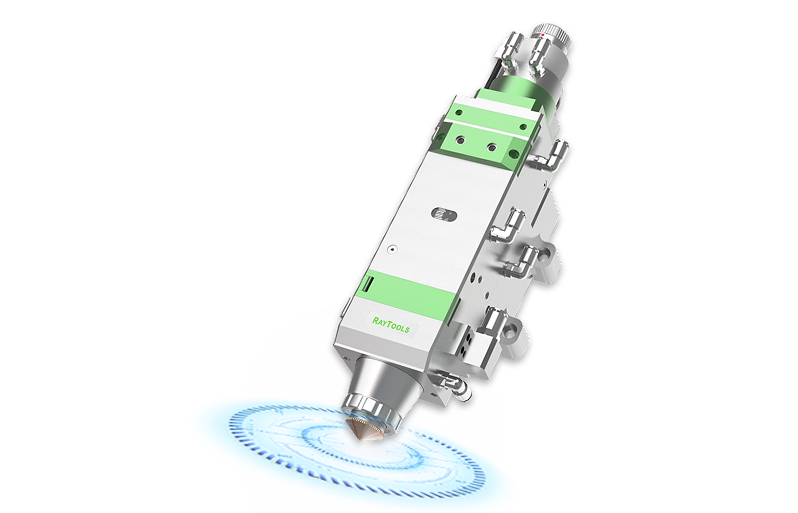

Autofocusing Laser Head

Supporting electric auto-focus adjustment, is designed for medium/high power of laser cutting. With sensor unit, controlling unit and driving unit integrated inside, it is a wonderful solution for achieving complete automatic cutting.

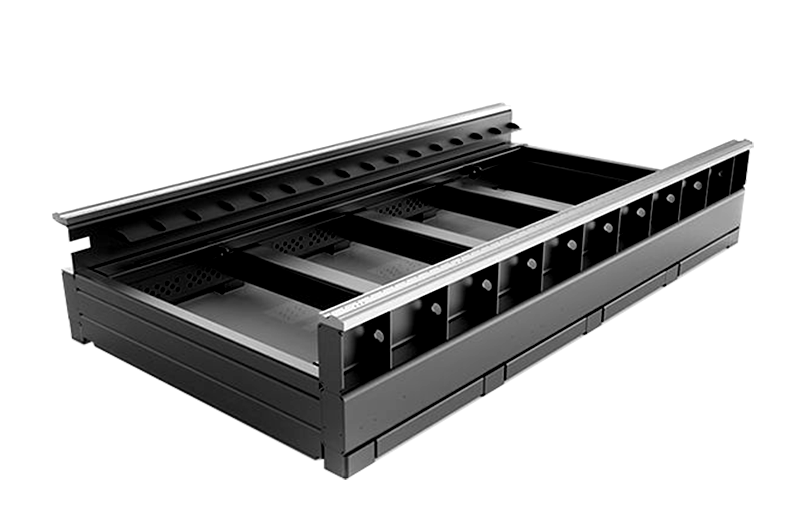

High rigidity Machine bed

Thick steel plate welding, high temperature annealing and natural aging eliminate the welding stress, no deformation for long-term use, low vibration, and high cutting accuracy. Rough machining, semi-finishing and finishing ensure high accuracy of guide rail.

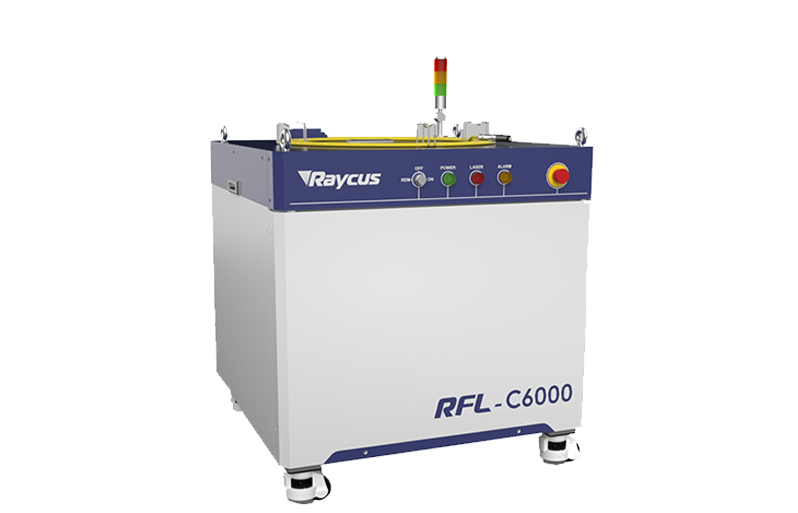

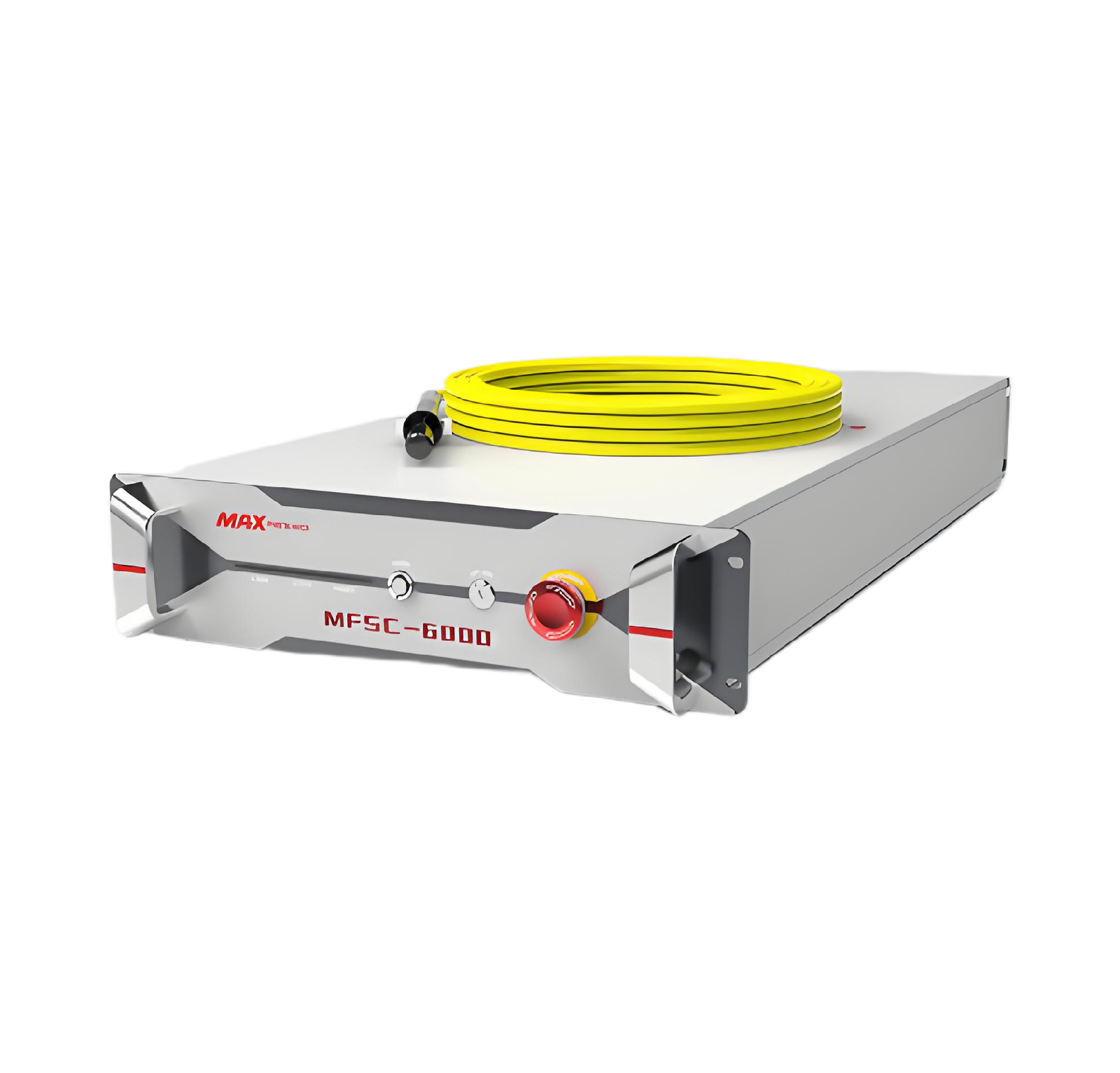

The third-generation CW fiber laser source

Adopt water cooling and modular design, highly-integrated system, free of maintenance, high reliability, high energy density, high beam quality and longer service life, maintenance-free operation for laser cutting.


Technical Parameter

G SeriesRT3015GRT4020GRT6020GRT6025GRT8025G
Positioning Accuracy±0.03mm
Repeat positioning accuracy±0.02mm
Max Acceleration1.6G
Operating Speed120M/MIN
Laser SourceIPG/Raycus/MAX

Enclosed Fiber Laser Cutting Machine Video

Cutting Samples

Enclosed Fiber Laser Cutting Machine
Enclosed Fiber Laser Cutting Machine
Enclosed Fiber Laser Cutting Machine
Enclosed Fiber Laser Cutting Machine
