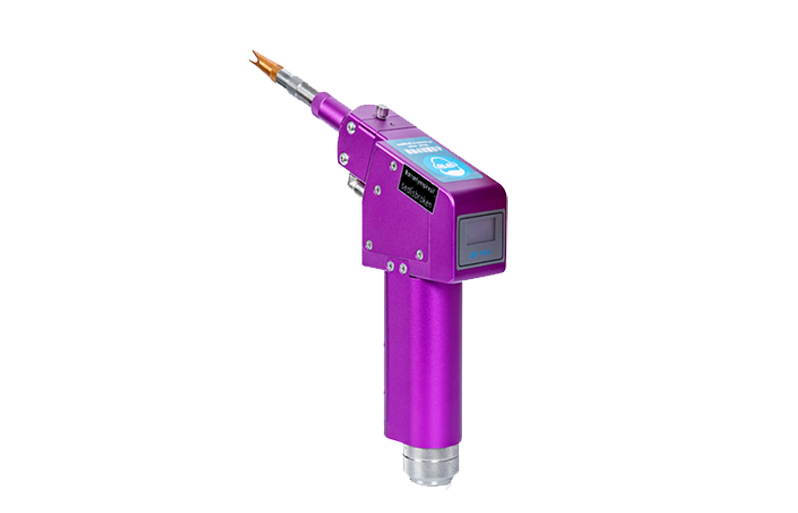

High Quality Laser Welding Head

Realize a variety of light output modes such as point, line, circle, triangle; Lightweight and flexible; Protective lens easy to replace; High quality optical lens; Scientific cooling system design, effectively control the working temperature of the product.

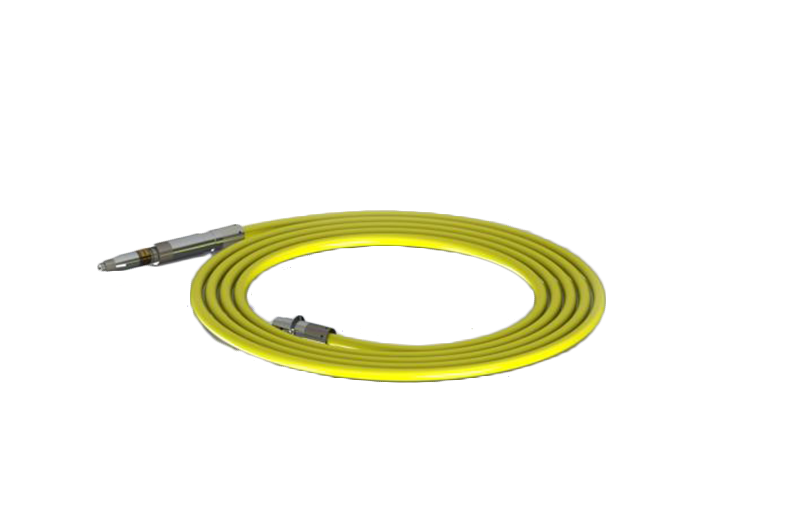

Longer Optical Fiber

The transmission optical fiber can be selected upto 15 meters, which breaks through the limitation of the workbench and can reach a wider welding range. It is suitable for various complex welds, and can perform laser welding on any part and angle of the workpiece.

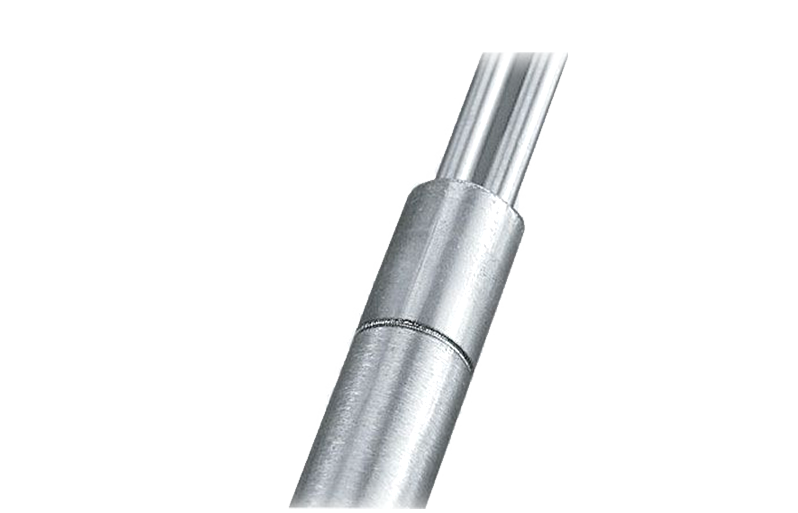

Better Welding Effect

Continuous laser mode, the welding seam transition is smooth, no fish scale pattern, and the welding seam is firm; the welding heat affected zone is small, the yellow and black areas on both sides of the welding seam are small, and the overall deformation of the workpiece is small.


Low cost of use and maintenance

The electro-optical conversion efficiency of continuous lasers is as high as 30%, which is 10 times that of solid-state YAG lasers and 3-5 times that of argon arc welding. At least 2 welders and 1 grinder can be saved per year. The life of the pump source is more than 100,000 hours, and it is basically maintenance-free.


Technical Parameter

HW SeriesRT-HW
Laser Wavelength1080±5nm
Welding Thickness0.5--3mm
Power Consumption5KW
Laser SourceIPG/Raycus/MAX

Handheld Fiber Laser Welding Machine Video

Cutting Samples

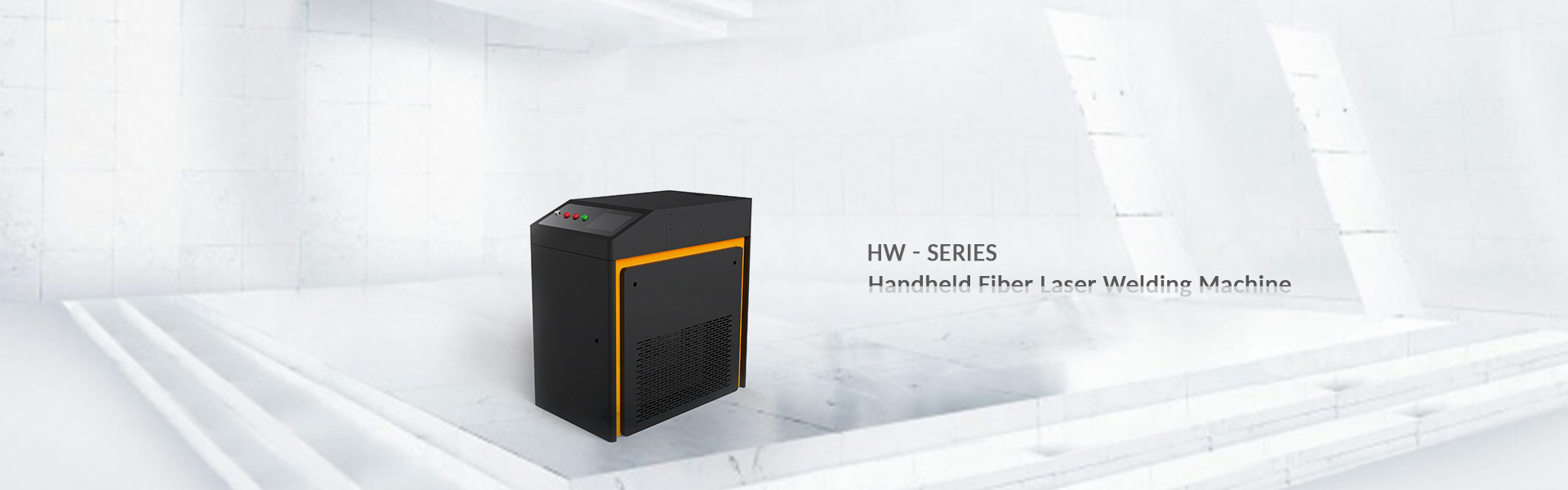

Handheld Fiber Laser Welding Machine
Handheld Fiber Laser Welding Machine
Handheld Fiber Laser Welding Machine
Handheld Fiber Laser Welding Machine
