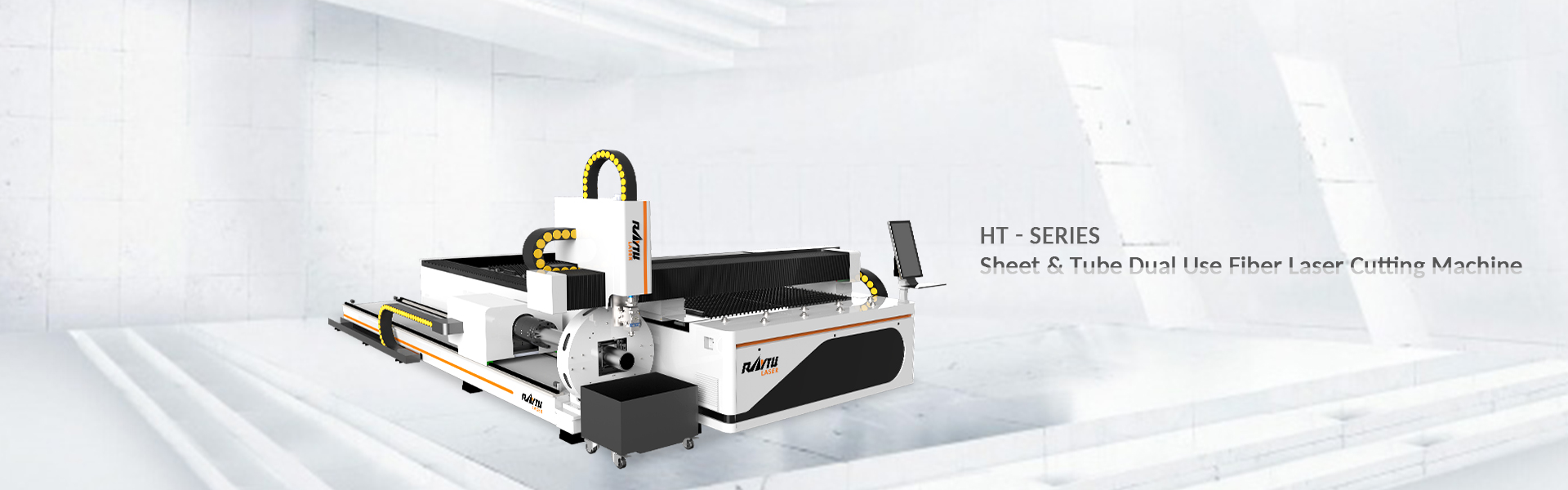

One Machine Dual Use

Integrate cutting of metal sheet and metal tube into one machine, meet the requirement of cutting various sheet and pipes. Integrated design to save both cost and land occupation.

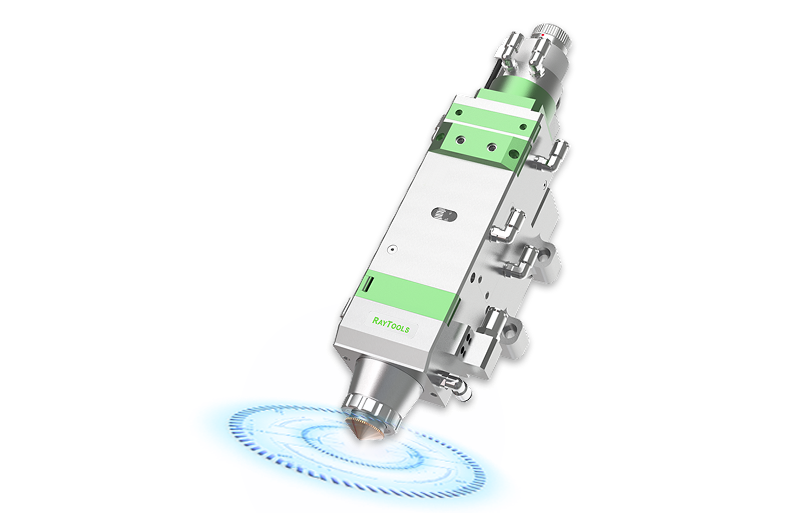

Autofocusing Laser Head

Supporting electric auto-focus adjustment, is designed for medium/high power of laser cutting. With sensor unit, controlling unit and driving unit integrated inside, it is a wonderful solution for achieving complete automatic cutting.

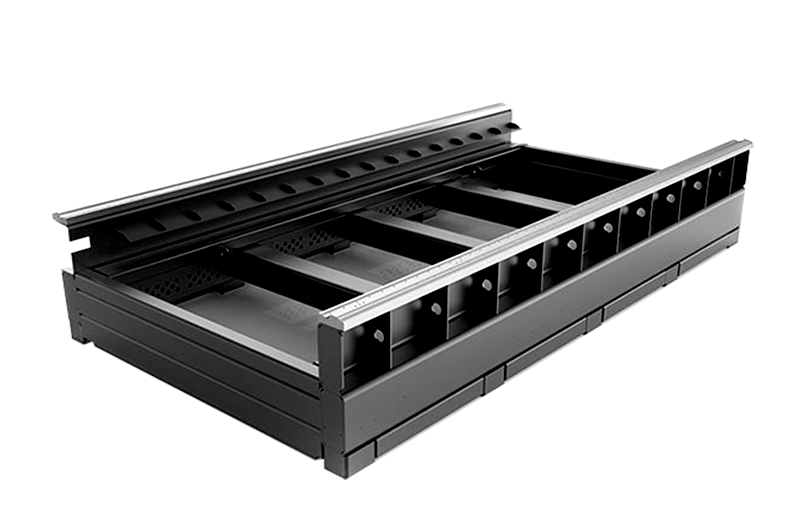

High rigidity Machine bed

Made with aerospace aluminum, extruded by 4300 ton extrusion press, reaching T6 hardness after aging treatment. High stability, light weight, corrosion resistance, moving speed up to170m/min, acceleration speed up to 1.5G.

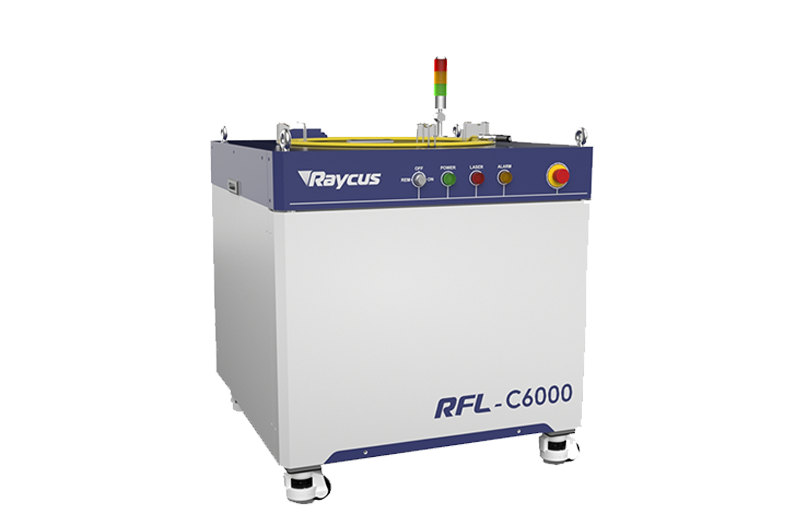

The third-generation CW fiber laser source

Adopt water cooling and modular design, highly-integrated system, free of maintenance, high reliability, high energy density, high beam quality and longer service life, maintenance-free operation for laser cutting.


Technical Parameter

HT SeriesRT3015HTRT4015HTRT4020HTRT6015HTRT6020HT
Positioning Accuracy±0.03mm
Repeat Positioning±0.02mm
Max Acceleration1G
Operating Speed100M/MIN
Laser SourceIPG/Raycus/MAX

Sheet & Tube Laser Cutting Machine Video

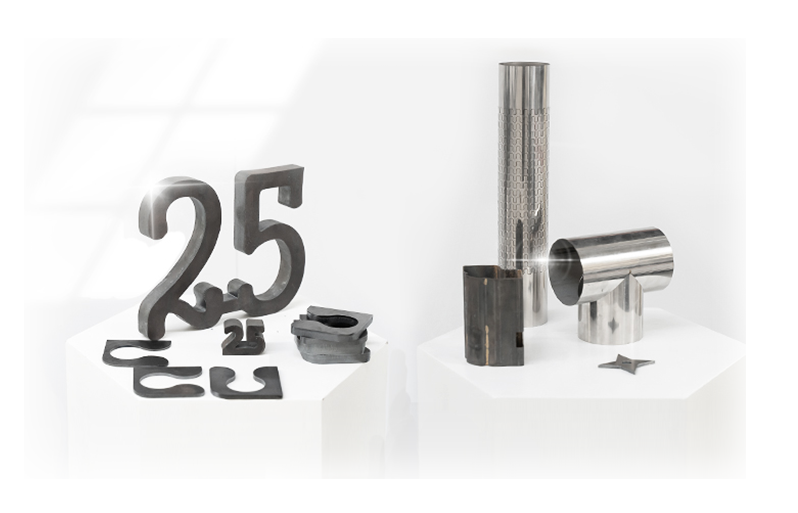

Cutting Samples

Sheet & Tube Laser Cutting Machine
Sheet & Tube Laser Cutting Machine
Sheet & Tube Laser Cutting Machine
Sheet & Tube Laser Cutting Machine
