Fiber Laser

The HP Single Module CW Fiber Lasers by Raycus range from 1000W to 12kW, with high efficiency, beam quality, energy density, reliability, long service life, and maintenance-free operation. They are used in welding, cutting, cladding, surface processing, 3D printing and other fields, and integrate with robots for 3D processing.

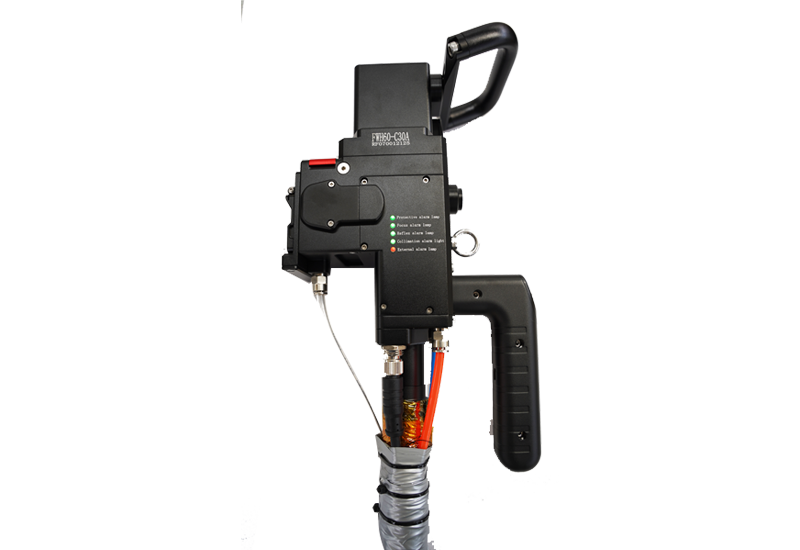

Laser cleaning head

Raycus fiber laser with high efficiency and long life, combined with an intelligent, water-cooled cleaning head for safe and precise rust, oxide, and coating removal.

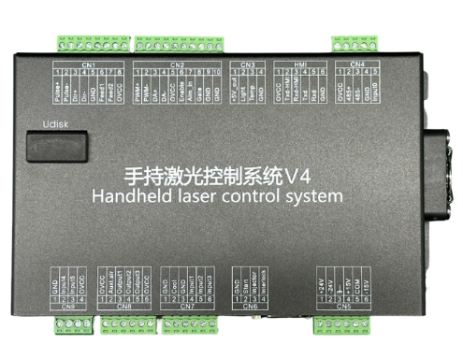

Sup Control system

1. Applicable to all brands of lasers

2. Add a variety of protection measures to the control signal part

3. Avoid potential safety hazards caused by misoperation, incorrect wiring or current interference


Water Chiller

Automatically adjust temperature by water circulation to cool the laser source and head. With water flow and temperature protection, the laser stops if cooling fails, protecting the machine.


Technical Parameter


No.NameBrand

Origin

Remarks
1

Laser source

Raycus

China

6kw

2

Laser heada

Relfa

China

FWH60-C30A

3

Machine Frame

Raytu

Shandong


4Water chiller

Hanli

China

6000

5

Control system


China

10m

6Control systemRelfar V4China

LED control panel

Delivery time

7-10 working days after get deposit

Warranty Time

2 years

Technical parameters

Center wavelength

1070±20nm

Intelligent Protection Function

Have

Focus Distance

1500mm

Adjustable power range

5-95%

Scan Range

10-500mm

Scanning Speed

40000mm/s

Auxiliary Air Pressure

>0.5-0.8Mpa

Effective Aperture

20mm

Laser Head Weight

2.2kg

Weight

280KG



6000w Laser Cleaning Machine Video

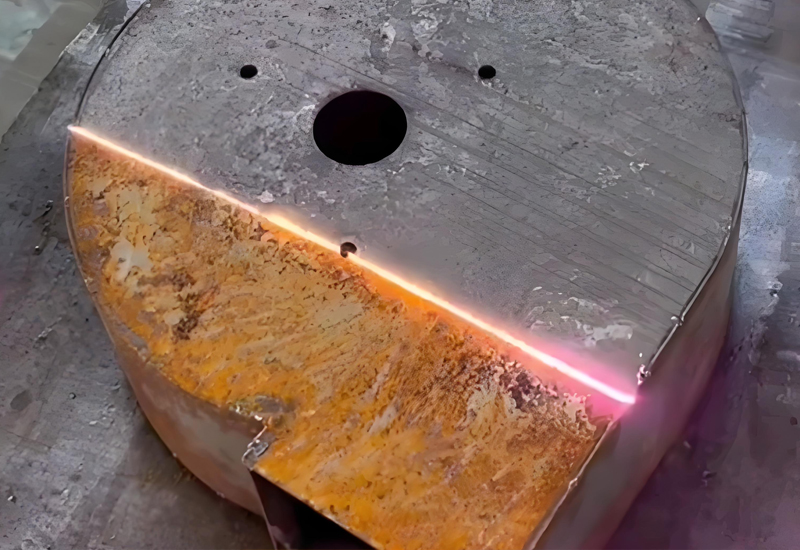

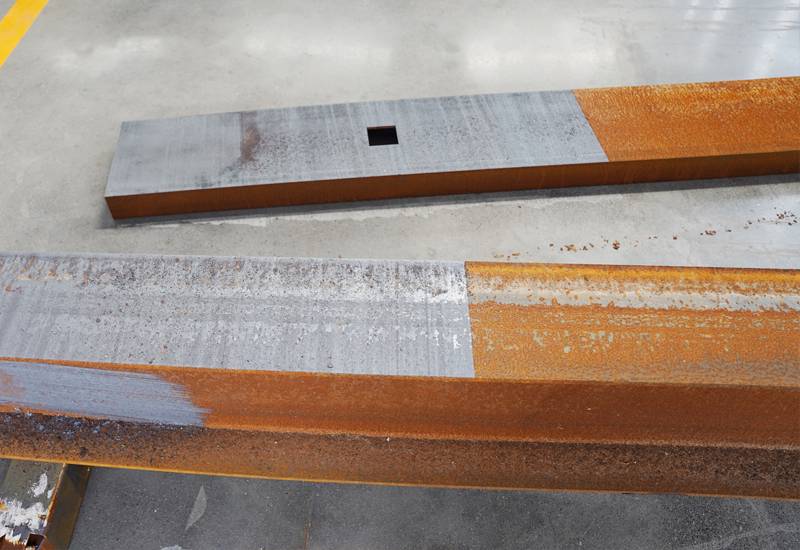

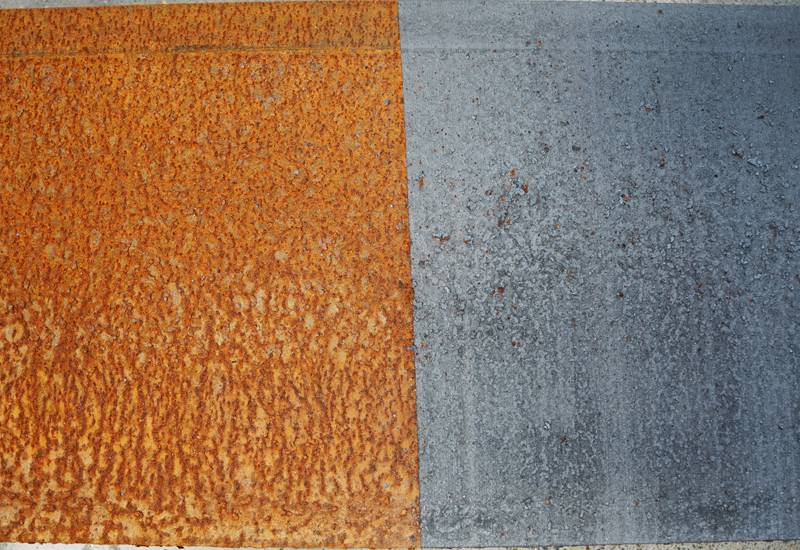

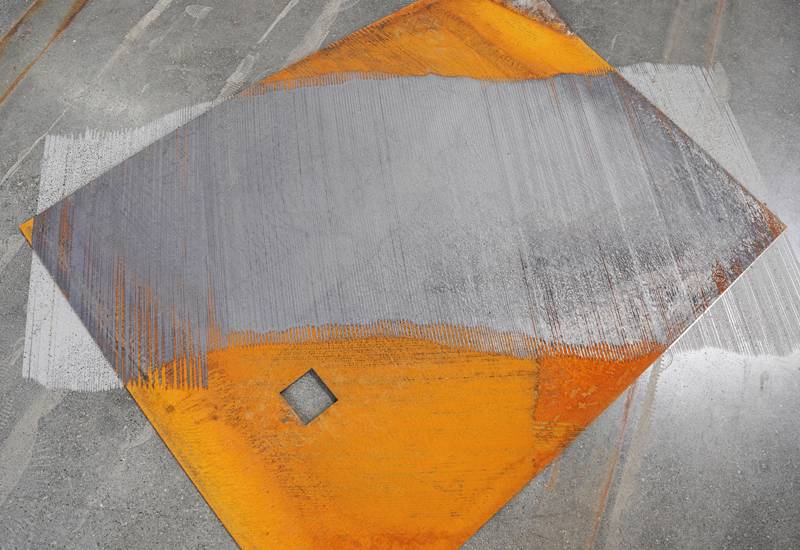

Cutting Samples

6000w Laser Cleaning Machine
6000w Laser Cleaning Machine
6000w Laser Cleaning Machine
6000w Laser Cleaning Machine
